Components Corp TP-104-01-02 Test Point Red

$0.50

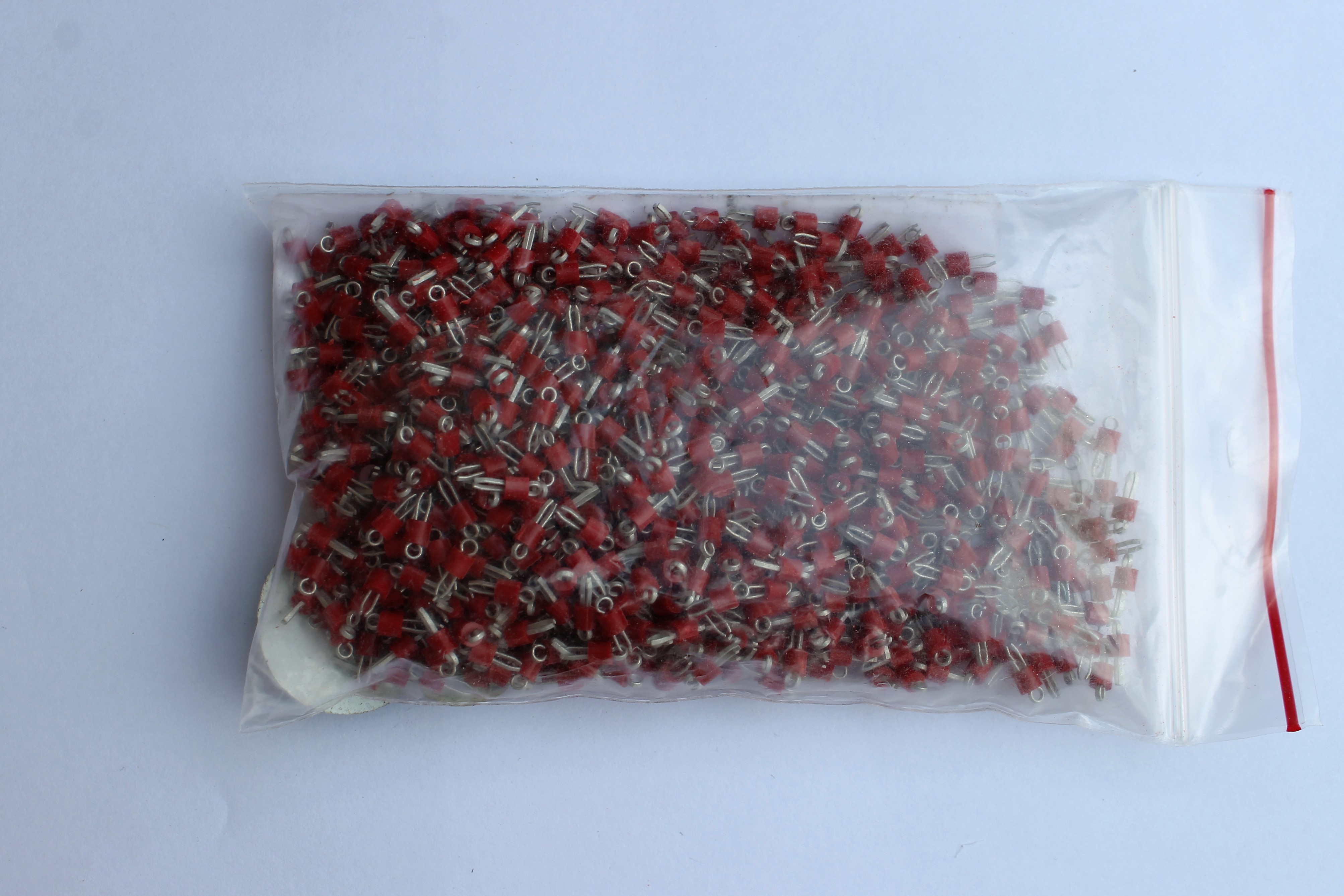

Red P.C. Mounted Test Point


Description

TP-104-01-02 RED

The new Components Corp TP-104-01-02 Red Test Point Series offers a highly-efficient and economical loop configured test point design one step further, by adding a plastic standoff that boosts visibility and allows for easy polarization and identification. The TP-104 incorporates all of the design features of all Component’s test points – solid non-slip grip of test clips and probes, low profile, single hole wave-solderable mounting, and the elimination of skin punctures suffered by users of wrap posts as substitute test points.

The TP-104 is furnished in 30-position breakaway strips with 0.125″ centers that make storage, handling and even tandem installations a snap. Component’s special hand tool #1040 further enhances board mounting with test point separating, gripping and positioning functions accomplished in one easy motion. Standard TP-104 colors are red and black, with special colors available on order.

The TP-104 can be ordered pre-cut to any number of positions up to 30. Individual and tandem units hold securely when inserted in .062″ diameter holes for soldering operation. The rectangular passage in the TP-104’s molded standoff maintains wire form alignment, important in tandem installations.

Specifications:

Materials:

Contact Material: .015″ x .030″ Phosphor Bronze #510 Alloy
Finish: .0001 Matte Tin over .00005 Nickel
Collar: 15% Glass Filled Polyester

Electrical:

Mounting Holes: .063″ diameter hole
Maximum Current: 2.0 amperes

Components Corporation

Data Sheet

Color: Red

Bulk Pricing Available:

1-99:                    $0.50

100-249:            $0.18

250-499:            $0.15

500-999:           $0.12

1,000-4,999:    $0.09

5,000-9,999:    $0.08

For larger quantities over 10,000pc please call us for special pricing.

Availability: Stock

Part No. TP-104-01-02
