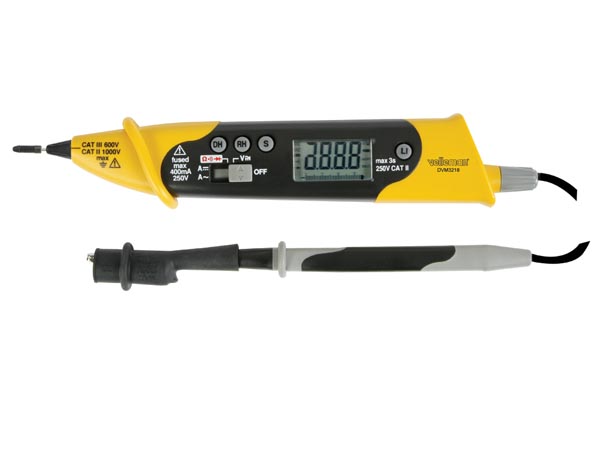

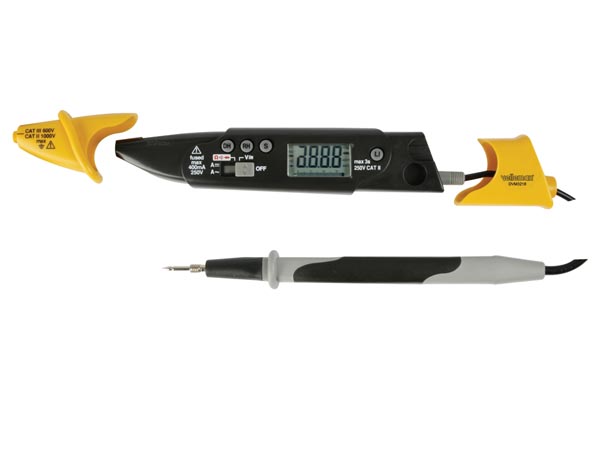

Multimeter Digital Pen-Type DVM3218

$44.95


Handy Pen-Type Multimeter DMM


Description

Pen-Type Digital Multimeter

DMM Instrument

Features:

  • auto range or manual range
  • data-hold function
  • auto power-off
  • diode and continuity test
  • voltage measurements: AC and DC 600V max.
  • current measurements: AC 34mA and DC 340mA max.
  • resistance measurements: 34Mohm max.
  • fuse protection: F500mA / 250V
  • conform with IEC1010 CATII 1000V, CATIII 600V

Important safety information

Specifications:

  • DC voltage: 340mV/3.4V/34V/340V/600V
  • basic accuracy: ± 0.8% for 340mV range / ± 1.0% for 3.4V~340V range / ± 1.2% for 600V range
  • input impedance: 10Mohm
  • maximum input: 1000Vdc
  • AC voltage: 3.4V/34V/340V/600V
  • basic accuracy: ± 1.2% for 3.4V~340V range / ± 1.5% for 600V range
  • input impedance: 10Mohm <100pF
  • frequency range: 40-400Hz
  • maximum input: 1000V
  • DC current: 34mA/340mA
  • basic accuracy: ±1.5%
  • overload protection: 0.4A / 250V fuse
  • AC current: 34mA/340mA
  • basic accuracy: ± 1.8% for 34mA range / ± 2.0% for 340mA range
  • overload protection: 400mA/250V fuse
  • resistance: 340/3.4K/34K/340K/3.4M/34M
  • basic accuracy: ±0.8% for 340 Ohm range / ±1.2% for 3.4K~340K range / ±2.0% for 3.4M range / ± 3.0% for 34M range
  • overload protection: 500V
  • capacitance : –
  • accuracy: –
  • inductance: –
  • frequency: –
  • basis accuracy: –
  • overload protection: –
  • temperature: –
  • basic accuracy: –
  • overrange: yes “OL”
  • continuity buzzer: yes
  • transistor test: no
  • diode test: yes 1.0mA (open circuit voltage = 3.4V DC)
  • low-battery indication: yes
  • maximum display: 3400
  • LCD display size: –
  • ranging mode: manual or automatic
  • data hold: yes
  • backlight: no
  • dimensions: 9″ x 1.4″ x 0.8″
  • weight (with battery): approx. 7oz
  • power supply: 2 x 1.5V LR44 batteries V13GA (incl.)
  • packing: –

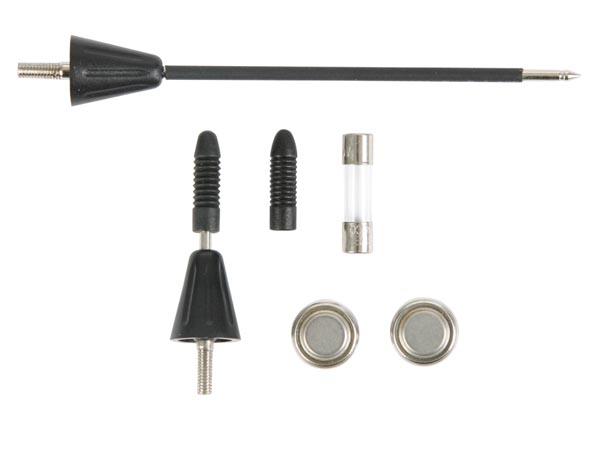

  • accessories: manual / battery
  • auto power-off: yes

This item is non-cancelable / non-returnable.

User Manual

Important Safety Information

Availability: In Stock

Order No. DVM3218
