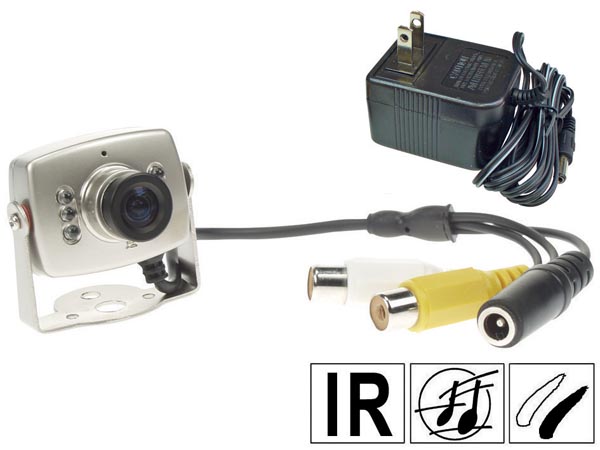

Mini B/W CMOS Camera

Description

Mini B/W CMOS Camera

Specifications:

• pick-up element: 1/4″ interline CMOS image sensor
• pixels: 352 x 288
• scanning system: 2:1 interlace
• resolution: 240 TV lines
• min. illumination: 0.5Lux / F1.4
• S/N ratio: >48dB
• electronic shutter: 1/50 to 1/15000 sec
• gamma correction: 0.45
• automatic adjustments:
• exposure
• gain
• gamma correction
• standard board lens: f3.6mm
• lens angle: 92°
• video output: 1.0Vpp composite, 75 ohm (yellow connector)
• audio output: RCA connector
• power supply: 8Vdc / 80mA (regulated, power adapter incl.)
• operating temperature: 14°F ~ 113°F
• storage temperature: -22°F ~ 140°F
• dimensions: 1.65 x 1.50 x 1.10″
• weight: 2.12oz
• cable length: 9.84″

Availability: 2 in stock

Order No. CAMZWMBLAH2U
